Large+ Heavy Duty Preventer™ Li-Ion Fire Blanket - 16' x 16'

Name: Large+ Heavy Duty Preventer™ Li-Ion Fire Blanket - 16' x 16'
Brand: Brimstone Fire Protection
SKU: FP-BL-1616-HD3-A-K1
Price: 2519.00 USD
Availability: InStock

$2,519.00 USD

Sale Sold out

Quantity

Product PN: FP-BL-1616-HD3-A-K1

This Industrial Lithium-Ion Fire Blanket offers a powerful, proactive safety measure against overheating electronic batteries and battery fires, minimizing the risk of injury and property damage. The Brimstone Large+ Heavy Duty Preventer™ Li-Ion Fire Blanket features a durable 10’ x 10’ (3 m x 3 m) heavy-duty core with an additional 3’ (1 m) single-layer border, providing expansive coverage of approximately 16’ x 16’ (4.9 m x 4.9 m). This advanced design ensures optimal ground protection during thermal runaway events. Weighing about 55 lbs (25 kg), it comes with a high-visibility safety orange bag for quick deployment and easy storage. Safeguard your environment with reliable, efficient protection.

For quantities of 11 or more, contact us for a quote.

All Brimstone bags and blankets are made in ISO 9001:2015 registered facilities. PROUDLY SEWN IN THE USA.

______________________________

We are proud of our products. Our materials are state of the art and our testing is thorough. Feel free to contact us should you have any further questions.

Includes

1 Heavy-Duty Industrial Li-Ion Fire Blanket (Large+)

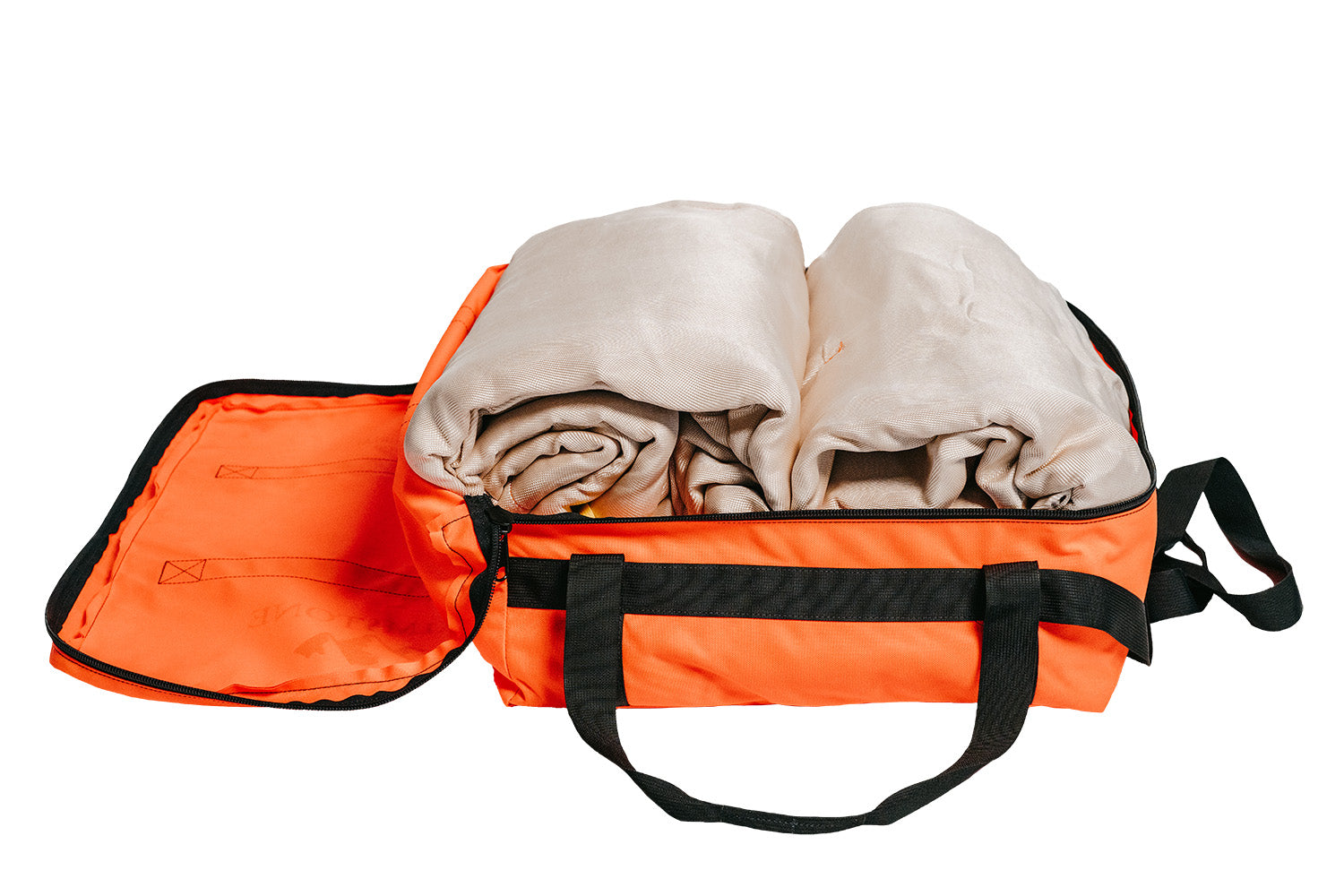

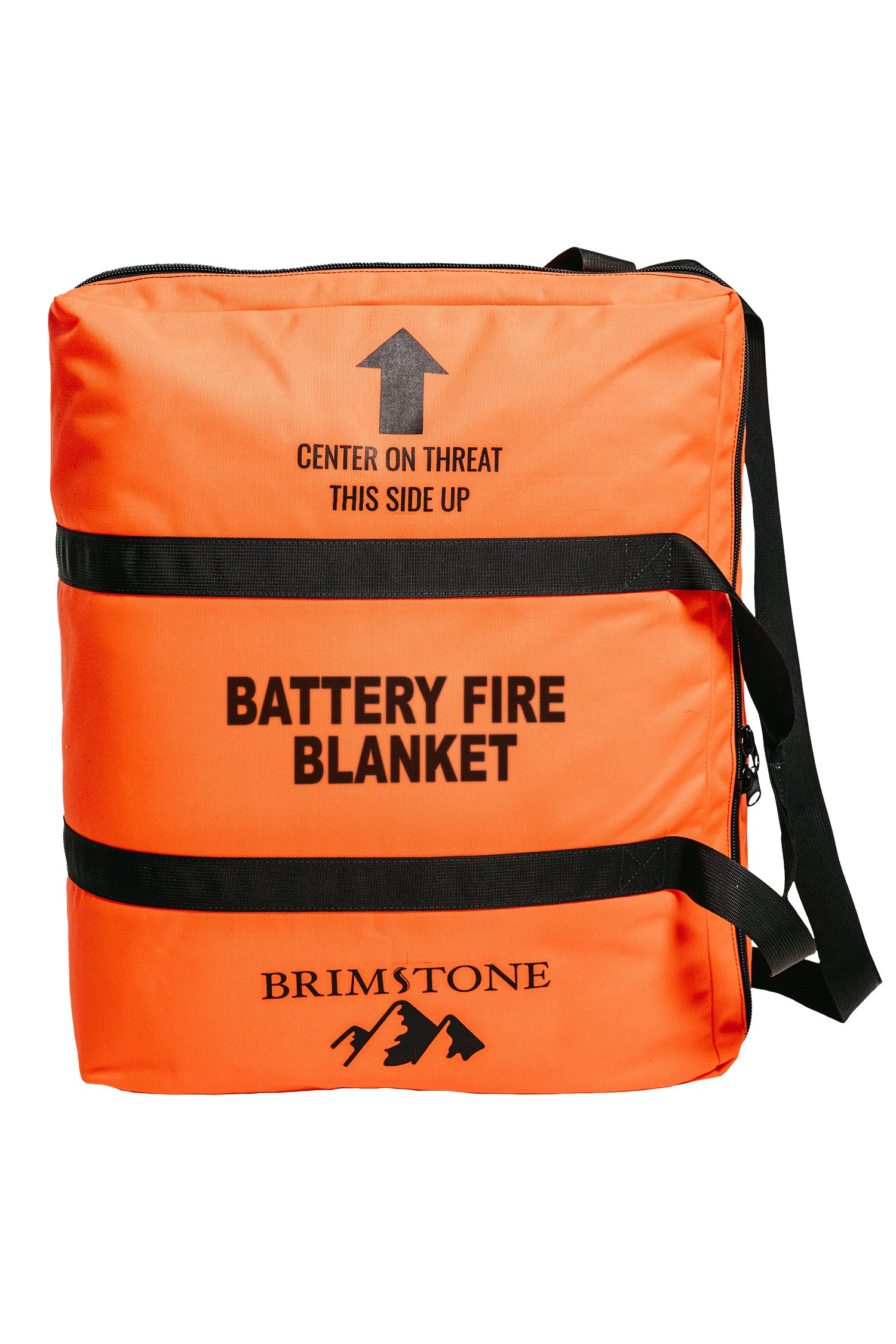

1 Safety orange carrying / storage bag
1 4" X 4" Vinyl peel & stick placard "PED FIRE CONTAINMENT BLANKET LOCATED HERE"

Dimensions

Blanket:

Approx. Size: 16’ x 16’ (4.9 m x 4.9 m); 10’ x 10’ (3 m x 3 m) HD3 layering with 3’ (1 m) single layer around the blanket perimeter
Approx. Weight: 55 lbs (25 kg)

Bag:

Approx. Size: 25" x 20.5" x 12" (63.5 cm x 52.1 cm x 30.5 cm)

Important Details

Intended for use in the event of a lithium-ion battery fire.
Color: Off white
Bright yellow 1.5" FR webbing handles (every 5' around the perimeter); knotted for easy gripping with gloved hands.

Testing and Technical Information

Outer material melting point: 2450 (F)+
Seam thread operating temp: 2000 (F)
Tested with exposed 5.3 kWh Tesla modules (100% state of charge)
1MM BTU torch tested: 15 min at 1900 F / 1038 C (max cold side temp 3" above surface was 111 F) - Report available upon request.
3RD Party Tested: 1950 (F) flame side. After 60 min, the hottest temp measured at 1.5" above the cold side was 213 (F). - Report available upon request.
Outside layer resistant to most chemical reagents and corrosive agents.
This item’s representative materials conform to the requirements of Burn Test FAA 14 CFR 25, Appendix F. Reports available upon request.
