The Brimstone EV Fire Suppressor System XL™ is a combo kit that includes the Mister & XL EV Blanket. While our EV blanket and Mister have the ability to work independently of each other, when used together, they create a comprehensive system to shut down a thermal runaway event during a lithium-ion battery fire emergency. Covering a vehicle quickly with an EV blanket provides a measure of containment and protection while the Mister cools the battery modules and helps mitigate and dampen vapor cloud ignitions.
The Brimstone EV Fire Suppressor Blanket XL™ is designed to protect most full-sized SUVs, trucks, large forklifts, and other sizable battery-operated equipment with ease. Our EV blankets are engineered to suffocate fires by cutting off oxygen, suppressing open flames, reducing temperatures, and minimizing smoke.

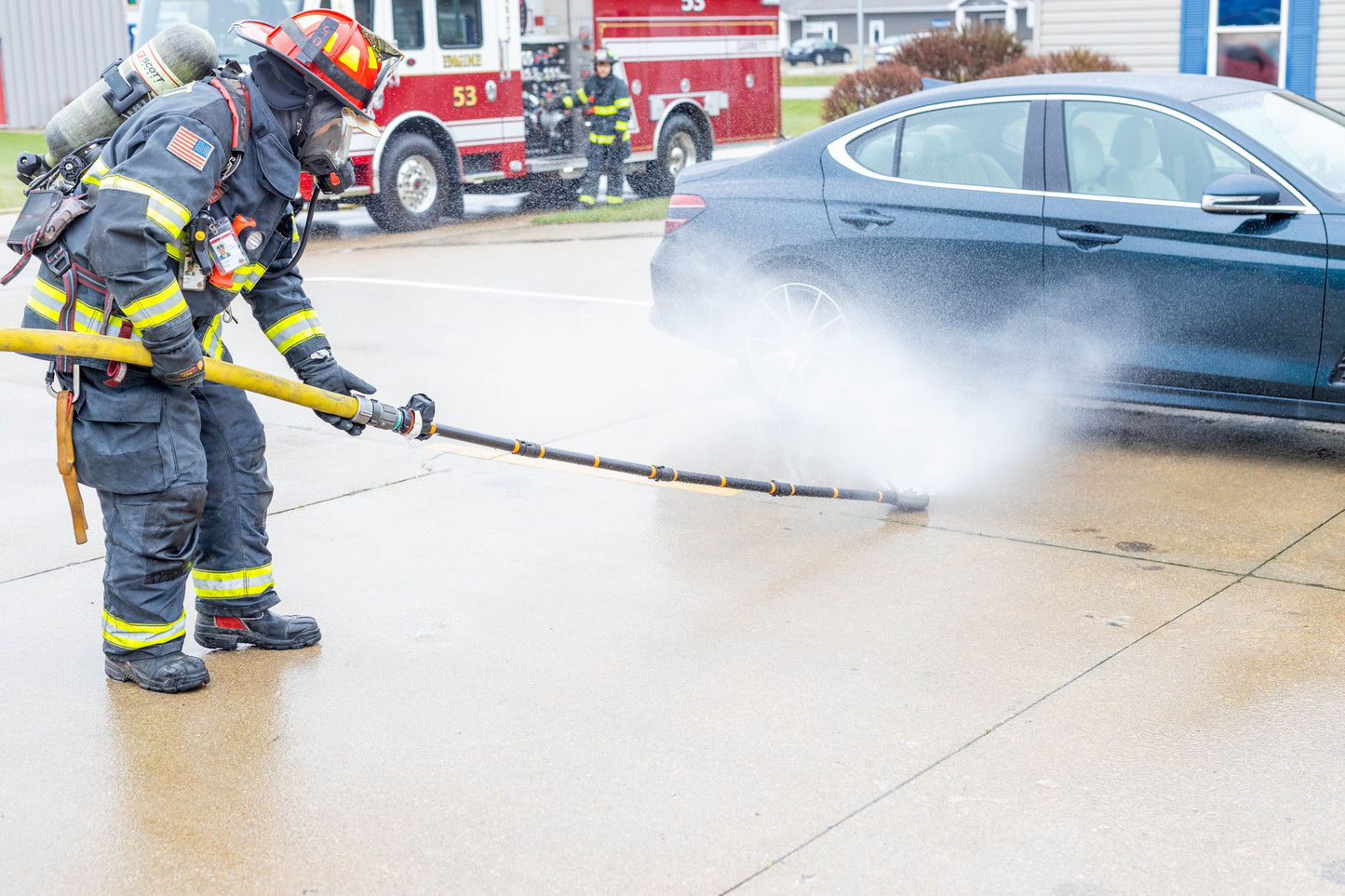

Our Brimstone EV Fire Suppressor Mister™ delivers a 10 gpm (38 lpm) low-flow water mist spray (firefighting droplet size / <1,000 microns) directly to the vehicle’s undercarriage. Tests validate the Mister’s low-flow rate is as effective as high-flow models while preserving water resources and reducing the amount of toxic runoff. And our low-profile Mister head (only 2.25” / 5.7 cm tall) easily fits under most vehicles and features 15 omni-directional nozzles.
This combination offers a comprehensive lithium-ion battery fire suppression solution, combining advanced misting technology with a durable, high-performance fire blanket for maximum protection.
*INTL Patent Pending
All Brimstone bags and blankets are made in ISO 9001:2015 registered facilities. PROUDLY SEWN IN THE USA.
______________________________
We are proud of our products. Our materials are state of the art and our testing is thorough. Feel free to contact us should you have any further questions.
Includes

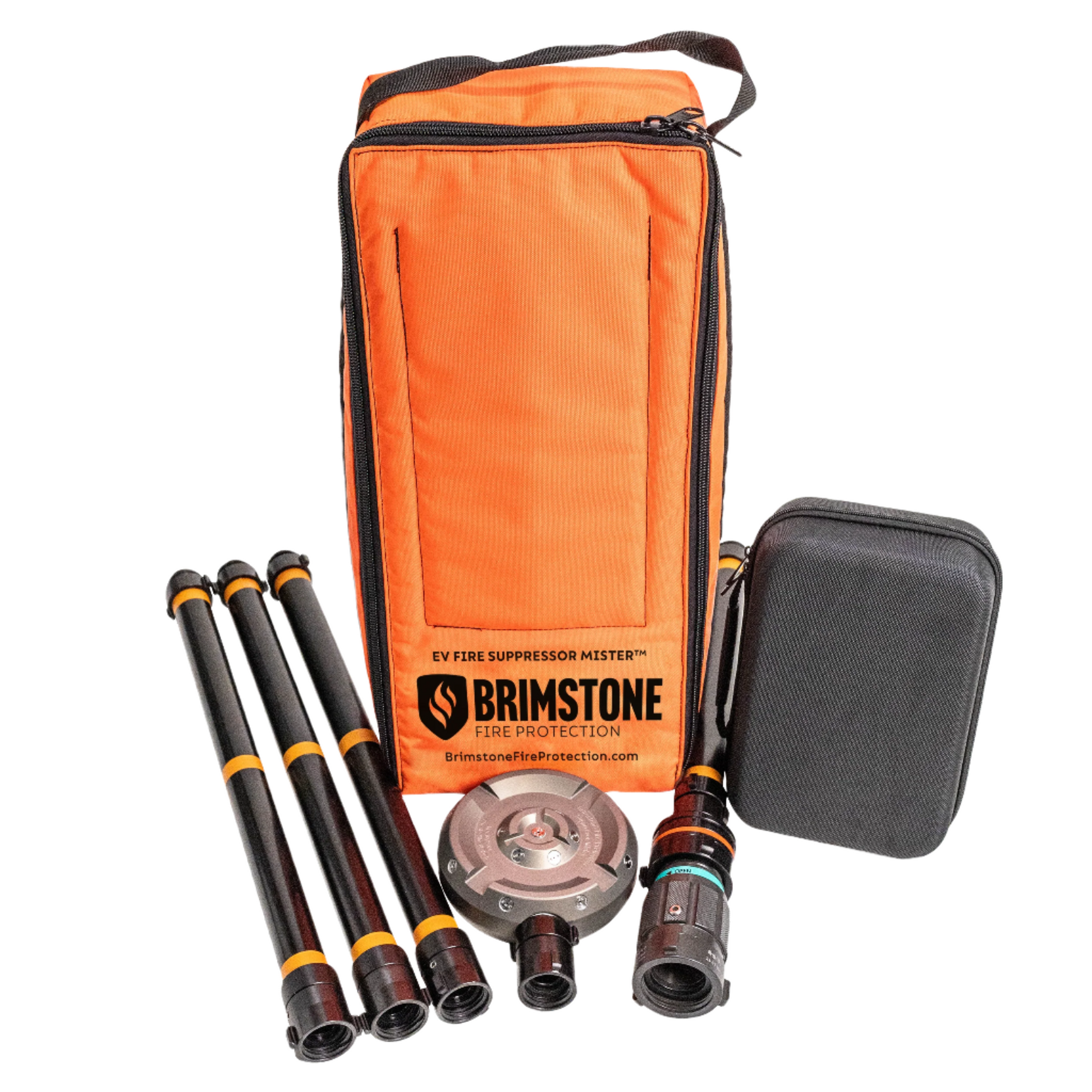

EV Fire Suppressor Mister (PN: FP-WM-KIT)
(1) 6” (15.2 cm) Diameter “no tip” Mister spray head with 15 individual omni-directional spray mist nozzles
(1) Valve pipe length
(3) Standard pipe lengths
(1) In-line mesh / filter sleeve
Carrying bag
Zippered hard case (for extra gaskets, in-line screens, and / or spanner wrenches)
XL EV Fire Suppressor Blanket (PN: FP-BL-XL-EV-K1)
1 EV Fire Suppressor Blanket XL (X-Large)

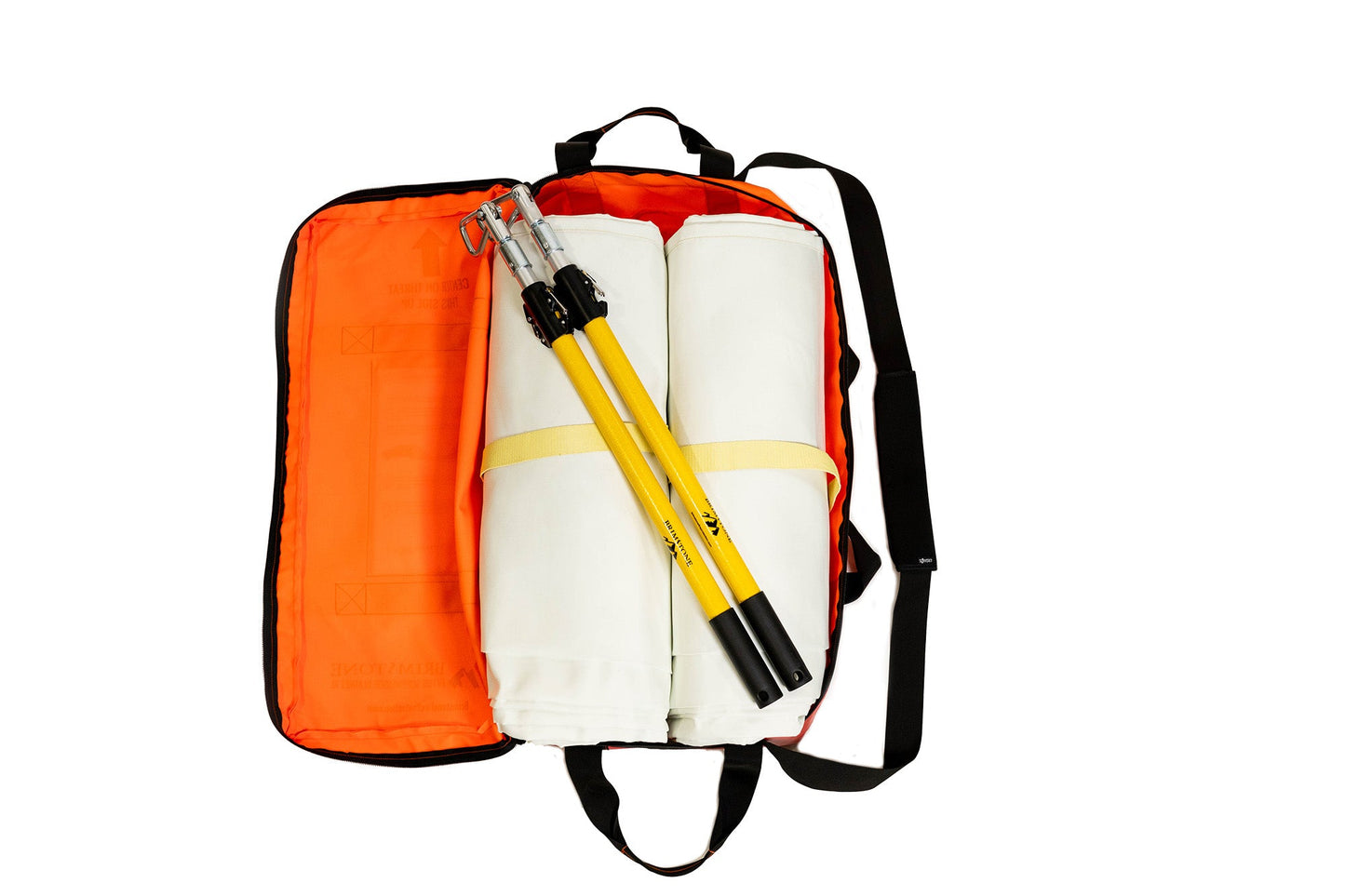

Carrying Bag

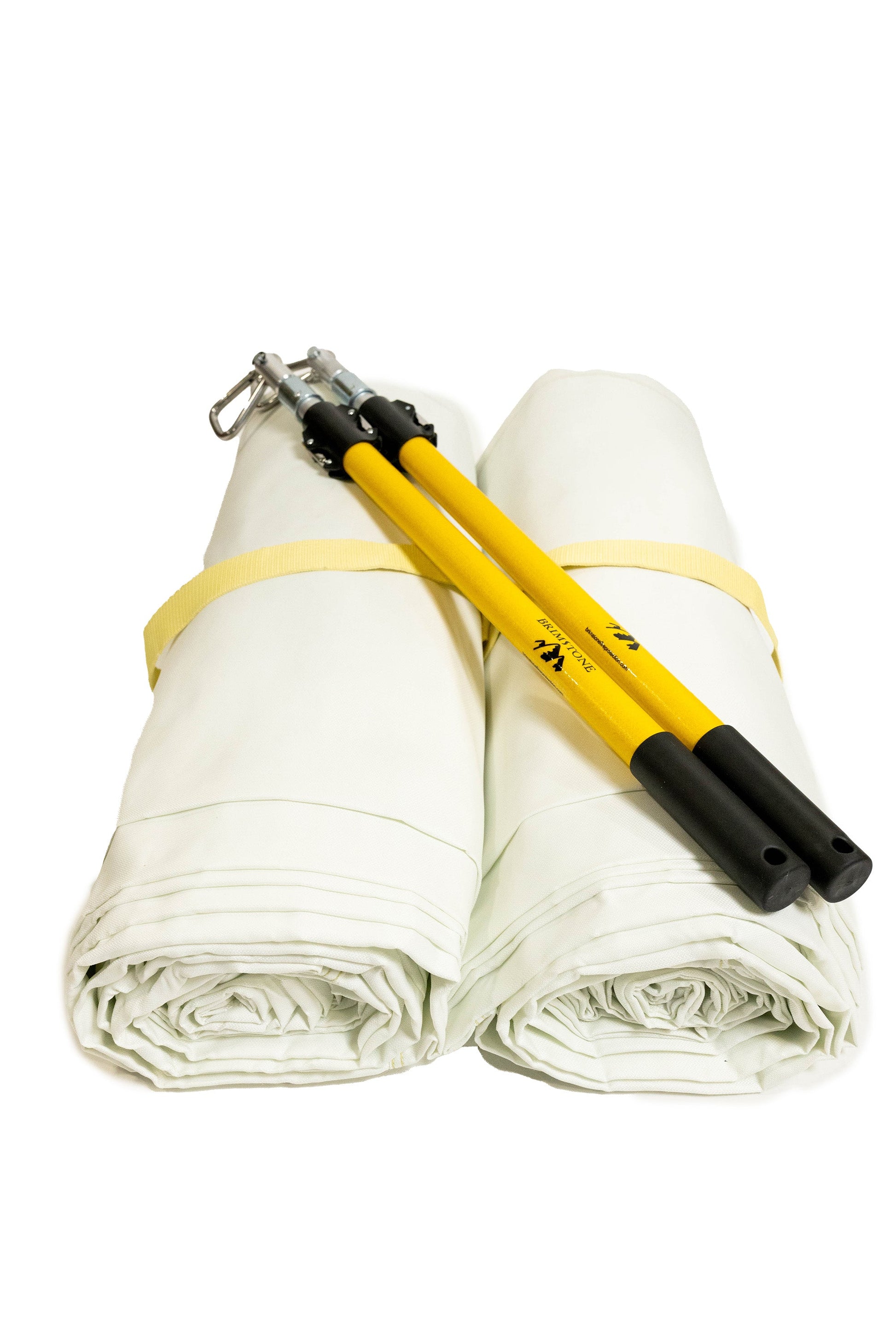

A pair of Extendable Poles
Cinch Strap
Step-by-step instruction card on the outside of the bag
Dimensions
Mister Dimensions:
Low Profile Clearance: 2.25" (5.7 cm) tall at the Mister head
Assembled Length: 92" (233.7 cm)
Approx. Weight: 12 lbs (5.5 kg)
Carrying Case Approx. Size: 9.75" x 20.5" x 5.5" (24.8 cm x 52.1 cm x 14 cm)
XL EV Blanket Dimensions:
Approx. Size: 25’ x 33’ (7.6 m x 10.1 m)
Approx. Weight: 90 lbs (40.8 kg)
Carrying Bag Approx. Size: 15” x 30” x 9” (38.1 cm x 76.2 cm x 22.9 cm)
Poles Approx. Size: 30" (76.2 cm) retracted x 53" (134.6 cm) extended; 3 lbs (1.4 kg) per set
Cinch Strap Approx. Length: 53' (16.2 m)
Important Details
Intended for use in the event of an electric vehicle fire (lithium-ion battery fire) or standard vehicle fire.
Mister Features:
6” Diameter “no tip” Mister spray head with 15 individual omni-directional spray mist nozzles.
The system includes a valve pipe with a twist-to-open valve and an “always active” universal swivel, along with three standard pipe lengths for customizable assembly.
Each connection has large threading for ease of assembly.
Hose connection has a 1.5” forestry lug fitting (compatible with US fire hoses and trucks).
An in-line mesh filter sleeve ensures reliable operation.
Carry and deployment-friendly / high visibility bag.
Zippered hard case (for extra gaskets, in-line screens, and / or spanner wrenches).
Blanket Features:
Color: Unique bright white fabric with reflective straps for greater visibility.
Ultra lightweight single-layer materials with special lab-formulated coating on each side.
Unique reflective double-strap handle system for secure deployment and increased visibility.
Reflective tape centerlines, so the responders always know where the center of the blanket is.
Unique harness loops placed strategically around the perimeter of the blanket.
Quick rollout deployment strap system doubles as a whole vehicle wrap around cinch (53’ length in case the responders need to secure the EV Fire Suppressor Blanket XL tight around the base of the vehicle).
XL blanket comes with a pair of unique Brimstone EV Fire Suppressor Extendable Poles for use on taller vehicles and/or to keep responders farther away from the threat.

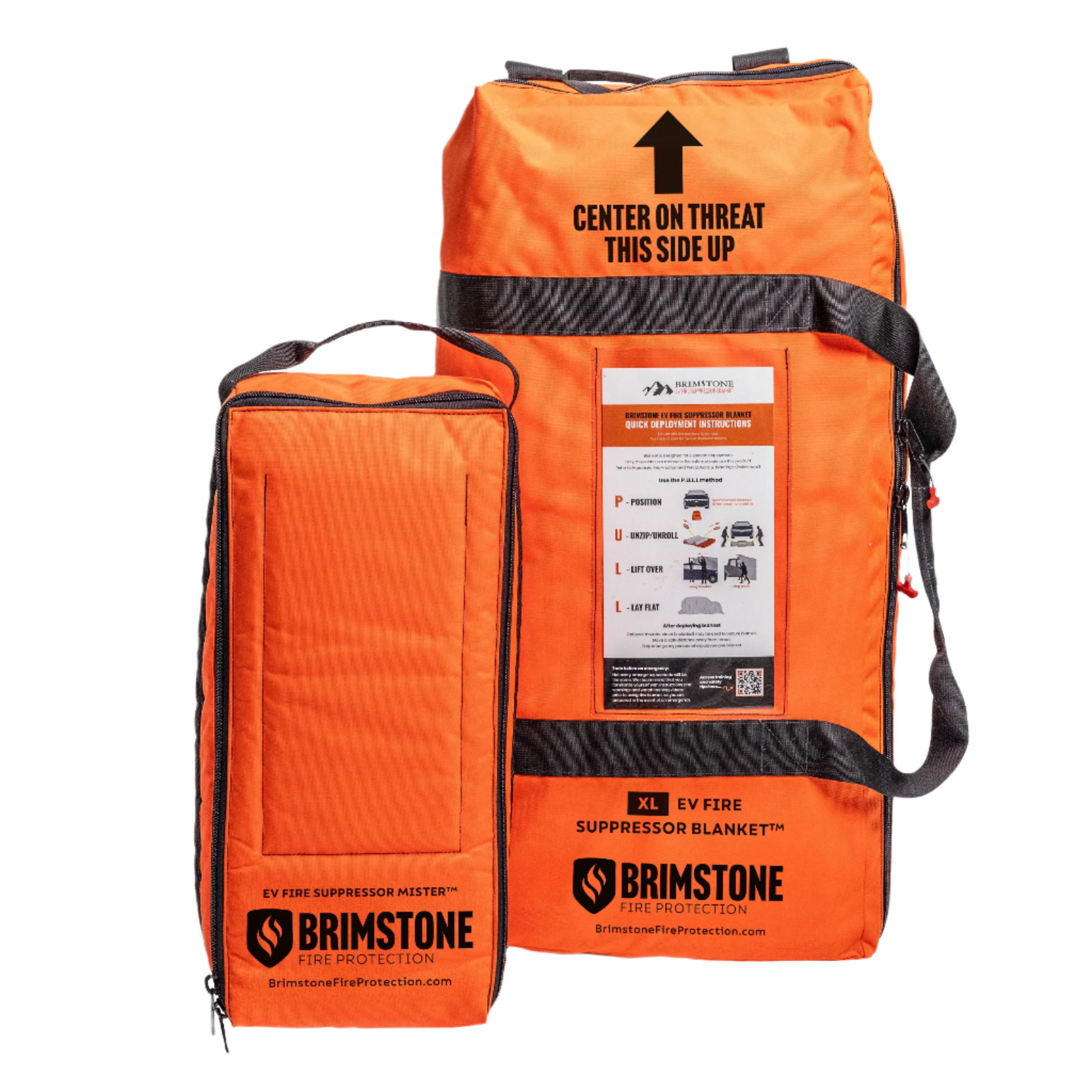

No dumping-out, “DROP & GO” quick access zipper bag.
Deployment simple “CENTER ON THREAT” arrow on the outside of the bag.

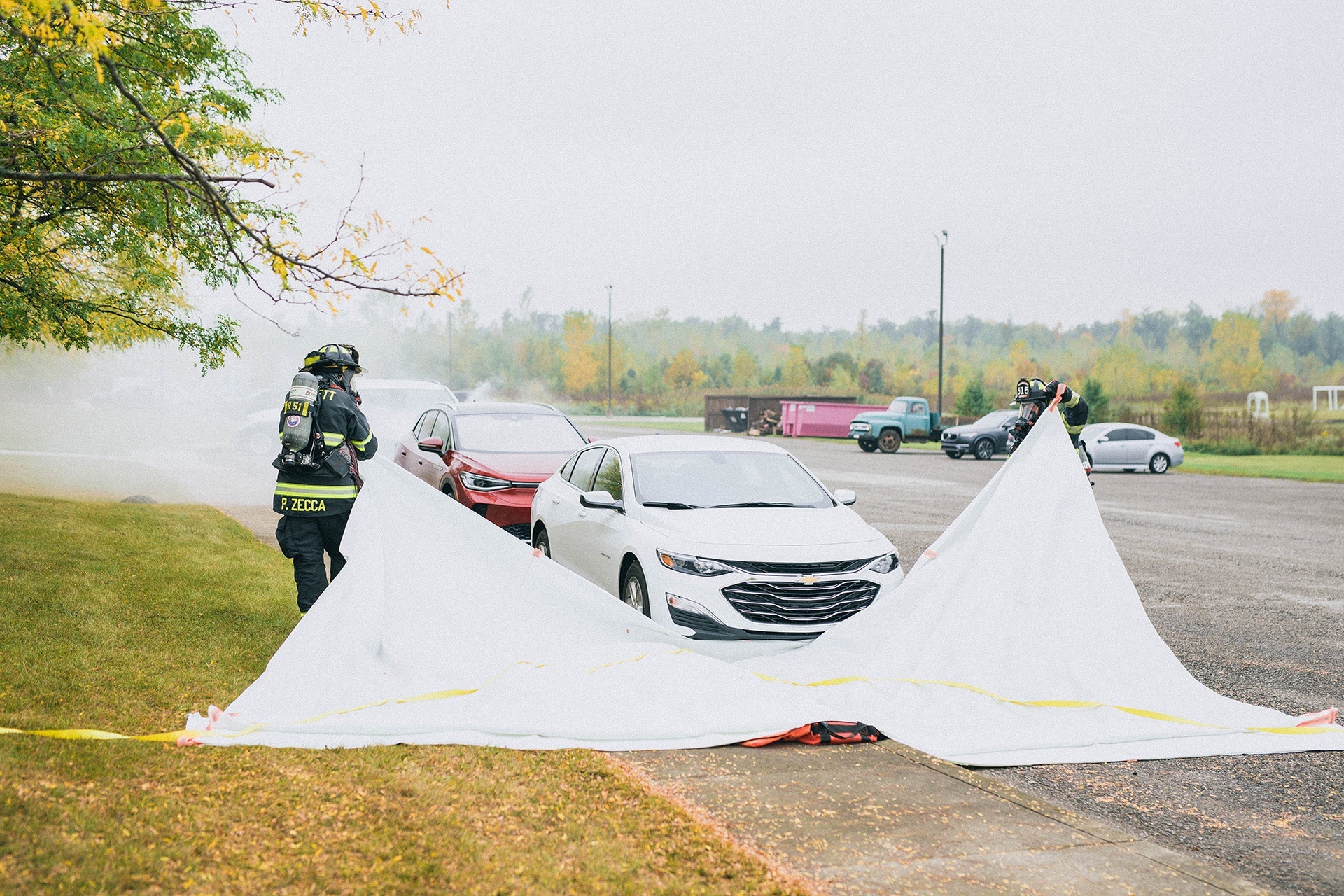

Thanks to our unique deployment system, only two people are required for deployment.
Other Uses for Blanket:
An EV blanket may also be used as a fire break (covering an object to protect it) or a fire wall (creating a barrier between the fire and other property).
Blanket resistant to most chemical reagents and corrosive agents.
3rd Party Tested:
FAA 25.853B Flammability Test - PASSED
FAA 25.853 Flammability Test - PASSED
FAA AC20-135 Fireproof 2000 F (1093.3 C) oil burner test - zero flame pass through for the entire test. (materials were still pliable after this test/ no embrittlement)
*BEWARE: Others advertise "NFPA 701 Tested" but fail to mention that standard has ZERO to do with EV or vehicle fires in general. It is a materials standard for drapery (YES, DRAPERY) and is wholly inadequate when compared to the above.
