The Brimstone EV Fire Suppressor Mister™ is a powerful, precision-engineered firefighting tool designed to enhance cooling and suppression capabilities during lithium-ion battery fire emergencies. Our Mister delivers a 10 gpm (38 lpm) low-flow water mist spray (firefighting droplet size / <1,000 microns) directly to the vehicle’s undercarriage. Tests validate the Mister’s low-flow rate is as effective as high-flow models while preserving water resources and reducing the amount of toxic runoff. And our low-profile Mister head (only 2.25” / 5.7 cm tall) easily fits under most vehicles and features 15 omni-directional nozzles. Built for efficiency, durability, and ease of use, the Brimstone EV Fire Suppressor Mister is an essential addition to any li-ion battery fire response toolkit.
How it Works:
The Mister is designed to be used in conjunction with an EV blanket during an electric vehicle fire—creating a comprehensive EV Fire Suppressor System ™.
Covering a vehicle quickly with an EV blanket, when done with a good ground seal, will provide a measure of containment and protection. It helps deprive the fire of free oxygen, thus suppressing flames, which in turn instantly lowers the temperature and decreases the smoke volume.
Then the Mister delivers water directly to the vehicle's undercarriage to cool the chassis, pulling heat away from the battery modules, to shut down a thermal runaway event.
*INTL Patent Pending
Recommended for use with Brimstone EV Fire Suppressor Blanket (standard or XL).
All Brimstone bags and blankets are made in ISO 9001:2015 registered facilities. PROUDLY SEWN IN THE USA.
______________________________
We are proud of our products. Our materials are state of the art and our testing is thorough. Feel free to contact us should you have any further questions.

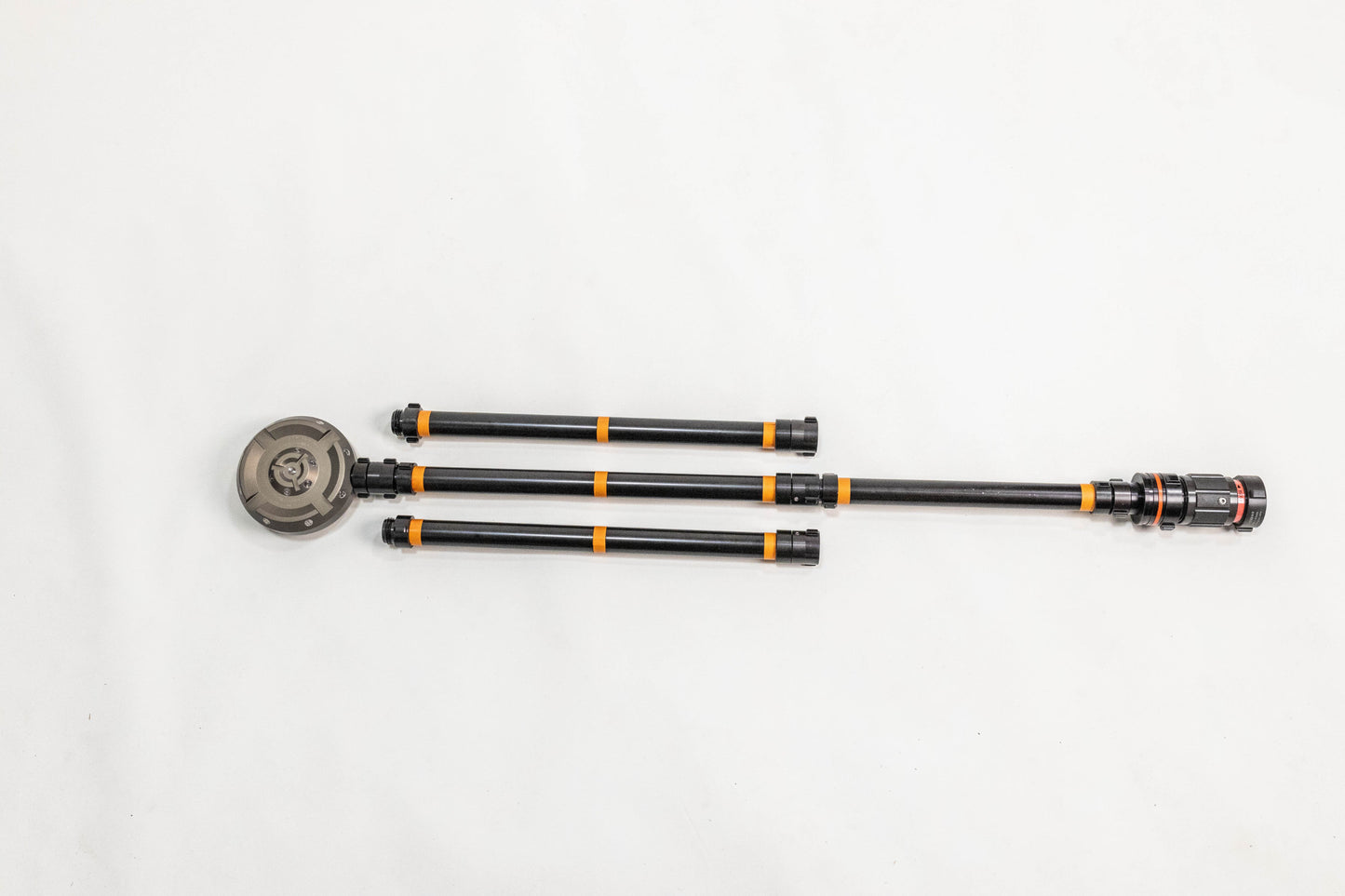

Includes
(1) 6” (15.2 cm) Diameter “no tip” Mister spray head with 15 individual omni-directional spray mist nozzles
(1) Valve pipe length
(3) Standard pipe lengths
(1) In-line mesh / filter sleeve
Carrying bag
Zippered hard case (for extra gaskets, in-line screens, and / or spanner wrenches)
Dimensions
Low Profile Clearance: 2.25" (5.7 cm) tall at the Mister head
Assembled Length: 92" (233.7 cm)
Approx. Weight: 12 lbs (5.5 kg)
Carrying Case Approx. Size: 9.75" x 20.5" x 5.5" (24.8 cm x 52.1 cm x 14 cm)
Important Details
Intended for use in the event of an electric vehicle fire (lithium-ion battery fire) or standard vehicle fire.
6” Diameter “no tip” Mister spray head with 15 individual omni-directional spray mist nozzles.

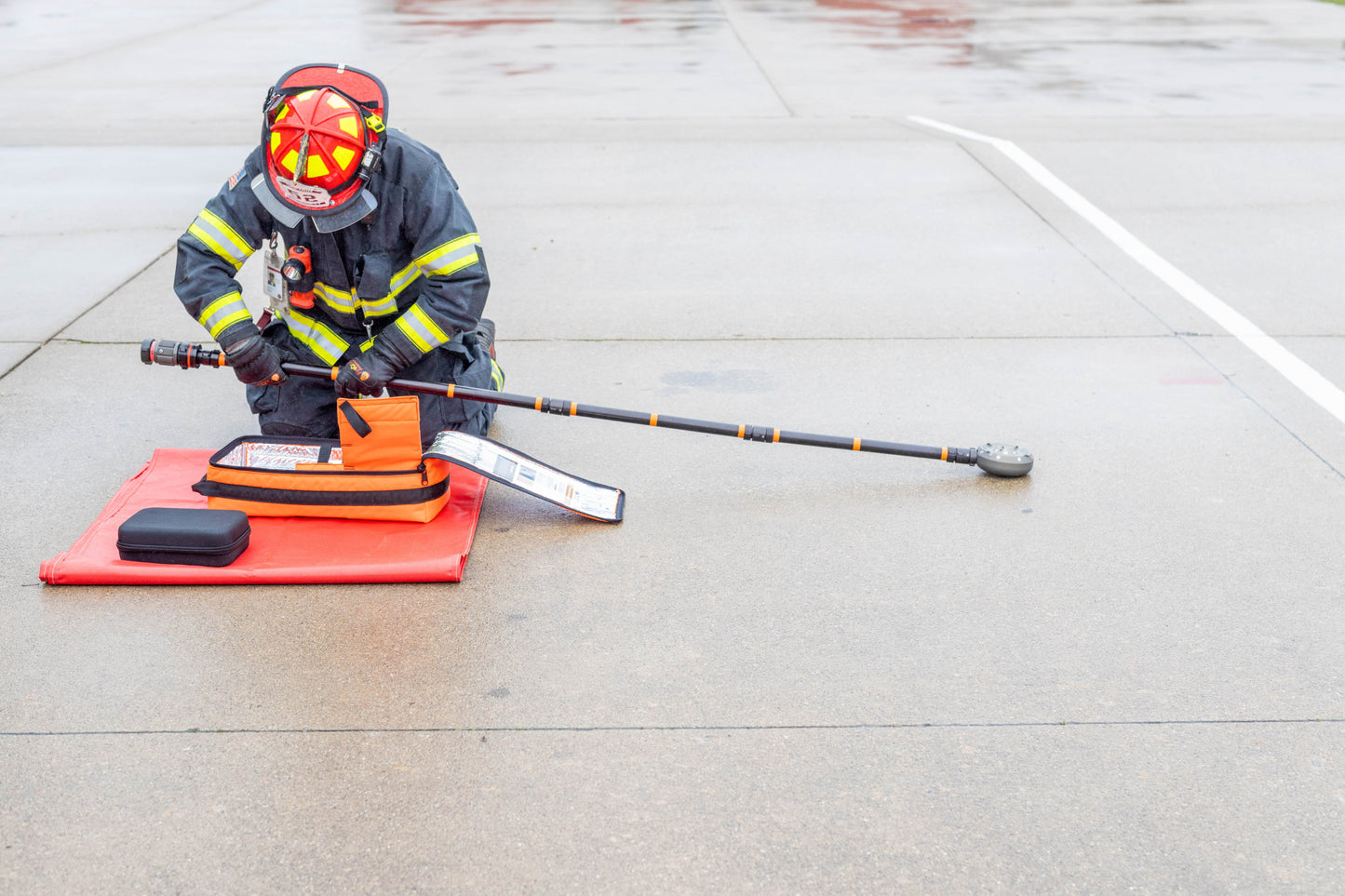

The system includes a valve pipe with a twist-to-open valve and an “always active” universal swivel, along with three standard pipe lengths for customizable assembly.
Each connection has large threading for ease of assembly.
Hose connection has a 1.5” forestry lug fitting (compatible with US fire hoses and trucks).
An in-line mesh filter sleeve ensures reliable operation.
Carry and deployment-friendly / high visibility bag.
Zippered hard case (for extra gaskets, in-line screens, and / or spanner wrenches).
How it Works:
The Mister is designed to be used in conjunction with an EV blanket during an electric vehicle fire—creating a comprehensive EV Fire Suppressor System.
Covering a vehicle quickly with an EV blanket, when done with a good ground seal, will provide a measure of containment and protection. It helps deprive the fire of free oxygen, thus suppressing flames, which in turn instantly lowers the temperature and decreases the smoke volume.
Then the Mister delivers water directly to the vehicle's undercarriage to cool the chassis, pulling heat away from the battery modules, to shut down a thermal runaway event.
Other Uses:
In certain situations, the Mister may be used for stand-alone cooling and has been found to offer effective undercarriage coverage in winds up to 25 mph.
Testing and Technical Information
With 100 psi at the Mister head, a 10 gpm (38 lpm) low-flow water mist spray will be delivered directly to the vehicle's undercarriage to cool the chassis, pulling heat away from the battery modules, to shut down a thermal runaway event. (firefighting droplet size / <1,000 microns)
Tests validate the Mister’s low-flow rate is as effective as high-flow models, while preserving water resources and reducing the amount of toxic runoff.
The fine mist can also help mitigate and dampen vapor cloud ignitions that could occur underneath the EV blanket.
